List of LED Bead Specification for Regular Model and Power

The model and power of led lamp beads are often encountered when we select lamp beads.When purchasing lamp bead materials, it is often necessary to know that the model and power of led lamp beads mainly depends on which package type selected, and the choice of package type mainly depends on what product that it is used for. The direction of selection is naturally different from different usage.For example, if you are using an indicator light, then you can choose an in-line led lamp bead, or a small patch lamp bead.If you are selecting a general lighting fixture, then choose medium-power, high-power SMD LED lamp beads, or imitation lumen high-power lamp beads.If you choose tunnel lights, high bay lighting fixtures, then choose high-power integrated LED lamp beads.

Why choose this way?

Because these package types of lamp beads have different powers.So, today, Zhongshan Enjoy Led Company will talk about: led lamp bead model and power, list of led lamp bead specifications and models

- 1 -

The model and power of LED lamp bead .Let's first take a look at the types and power of led lamp beads:

1). In-line led lamp beads;

2). SMD LED lamp beads;

3). High-power led lamp beads.

What are the models of these package types of LED lights?What is their power?

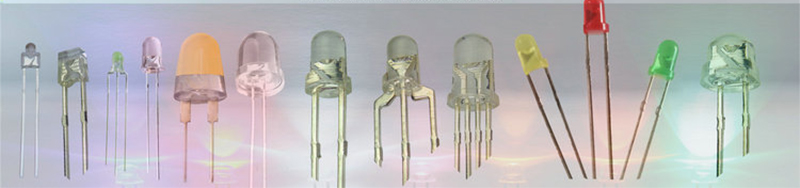

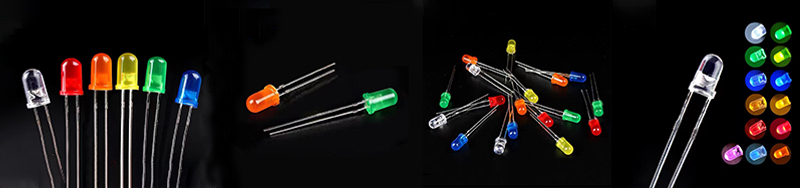

1). In-line LED lamp beads

In-line led lamp bead model and power:

By model: 2mm, 3mm, 4mm, 5mm, 8mm, 10mmled lamp beads.

Power: The power of each lamp bead of these models is 0.06 watts.

Model and power of led lamp beads, list of led lamp bead specifications and models

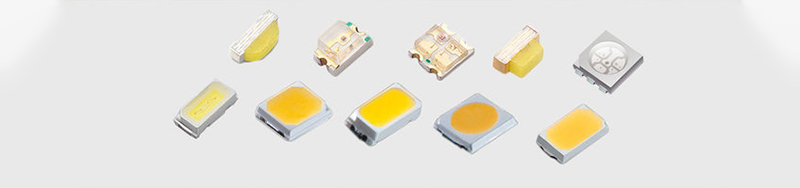

2). SMD LED lamp beads

SMD led lamp bead model and power:

By model:

Low-power SMD LEDs: 0402, 0603, 0805, 1206, 3528 LEDs, each with a power of 0.06 watts.

Medium power SMD lamp beads: 3014, 4014, 5050, 2835 lamp beads, the power is mainly 0.1 watt or 0.2 watt each.

High-power SMD LEDs: 5630, 3030, 5730, 7020, 3535, 7030 LEDs, each with a power of 0.5 watt or 1 watt.

Model and power of led lamp beads, list of led lamp bead specifications and models

3. High-power LED lamp beads

Model and power of high-power led lamp beads:

By Type: Imitation Lumen High Power and Integrated High Power Lamp Beads.

Type 1: There are 3 kinds of imitation lumen high-power led lamp beads, the power is single 1 watt, 3 watt and 5 watt.

Type 2: Integrated high-power LED lamp beads, the main power of a single lamp bead is 10 watts, 20 watts, 30 watts, 40 watts, 50 watts, 70 watts, 80 watts, 100 watts, 200 watts.

- 2 -

List of specifications and models of led lamp beads

Then, what is the list of led lamp bead specifications and models.

Specifications and models of led lamp beads. A chart of the specifications and model parameters of led lamp beads.

Why do people look for a list of specifications and models of led lamp beads.

Moreover, some people are looking for a list of specifications and models of in-line led lamp beads, a list of specifications and models of SMD led lamp beads, and a list of specifications and models of high-power led lamp beads.The reason for looking for these model tables is to quickly understand the parameters of the corresponding type of lamp beads, that is, to make lamp bead selection easier.So here you need to know the needs of users and how to quickly select lamp beads.

How to do the selection of LED lamp bead specifications and models?In addition to being familiar with the in-line, SMD and high-power LED lamp bead specifications and models, there are many factors.I give a few examples.

1) Find the product positioning of lamp beads.

You want to choose a mid-to-high-end lamp bead for use in export products.If the quality of the lamp beads you want to choose is better, the price is second.Then, you can choose the brand LED lamp beads.After all, the quality of branded LED lamp beads is better than that of brand-name LED lamp bead manufacturers.Why do many people now give up choosing trader to buy goods, and instead of choosing LED lamp beads manufacturers to cooperate.There are many reasons for these, but one of them is that lamp beads manufacturers have better quality than trader's stores, and at the same time, the delivery time and service are also better.Especially now, many lamp bead manufacturers can customize according to your original needs, which is an advantage that many traders do not have.

2) Select the package type.

Do you know where your product is used? The purpose of the product is also clear.

For example, it is used in indicator light products.

At this time, you are faced with lamp bead package type products.

Through the use of existing products, you may have your own lamp selection requirements.For example, if you are using it on the power indicator, one light board uses two light beads, one red light and one green light. Then you may choose in-line led lamp beads.However, if you are using it on the indicator light of a backlight product, and a light board uses 20 lamp beads, then you may choose SMD LED lamp beads.

Why?Because in-line lamp beads often require manual placement, the assembly efficiency is low, but the investment is simple, and the basic manual soldering iron can be operated.SMD lamp beads can be placed on a high-speed placement machine, and there are countless lamps in one hour, but you need to buy a machine or need to send it out.

3) Select the power of the lamp beads.

You know the brightness of the lamp beads you need, and then choose the appropriate lamp bead type based on the power. By calculating the power and matching the current drive current, you need the appropriate lamp bead type to meet your lamp bead needs. Power, brightness, current, voltage, all need to be considered at this time.

4) Select the lamp bead size.

Through the selection of the previous items, you can basically determine what type of lamp beads to choose at this time.At this time, you also need to confirm the size of the lamp beads, because there are many specifications of the lamp beads, it is obvious that the same lamp bead model has different lamp bead sizes.For example, 0603 lamp beads have a thickness of 0.6 and 0.8.For example, 0805 lamp beads have positive emitting lamp beads and side emitting lamp beads, both of which are 0805 lamp beads specifications, but the size of the lamp beads is different, and the luminous effect is also different, so pay attention.These are just a reminder, there are many selection details to pay attention to.

5) Confirm the specification and test the lamp bead samples.

Through the confirmation of the lamp bead parameters above, at this time, you have determined which lamp bead specification and model to choose.At this time, you need to confirm the lamp bead specification with the lamp bead supplier before selecting the model.

Find out the current, voltage, power, wavelength or color temperature, angle, and packaging method of the relevant lamp beads.Next, you need to find the lamp bead supplier for the corresponding lamp bead sample test.

What is the sample test?

Check whether the lamp bead electrical parameters, brightness, performance test, stability, and consistency can meet your usage requirements.Through the above 5 steps, if the lamp bead sample is OK, then congratulations.If the price is right, you can choose it.Model and power of led lamp beads, list of led lamp bead specifications and models
